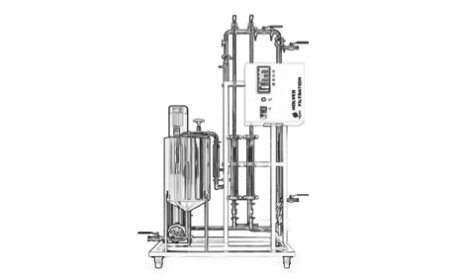

- Model：CSM
- Process capacity：30-60L/H
- Membrane element：French original imported ceramic membrane; 1812 spiral-wound membrane
- Contact material：Material AISI 304, food grade hose
- Material circulation tank：Effective volume V=30L
System Survey
●CSM can be applied to microfiltration, ultrafiltration and fine ultrafiltration
●It can do the membrane selection according to the size of the molecular weight
and separate the material of 1.4μm-1KD
●It has the advantages like easy and flexible operation, and easy cleaning, etc

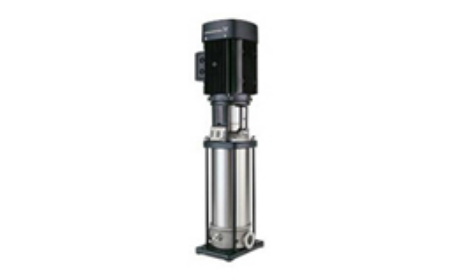

Power Unit
Imported GRUNDFOS pump
Inverter control
With high pressure protection device

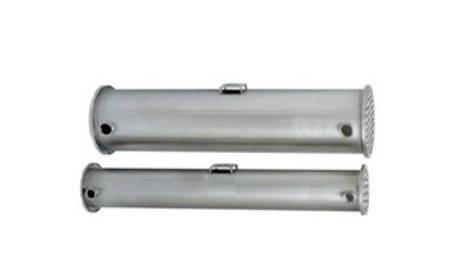

Membrane Shell
PH range：0-14
Working pressure：<95℃
Maximum working pressure：<10bar
Connection type：ANSI flange type connection

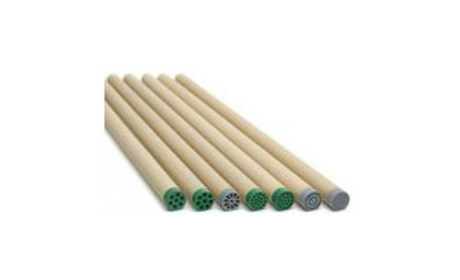

Ceramic Membrane Element
French original imported ceramic membrane
Membrane model ：φ25mm：580/1178mm
Range of application：Microfiltration, ultrafiltration and fine ultrafiltration

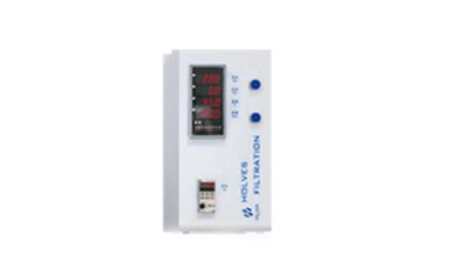

Electrical Control Cabinet
Online monitoring of temperature, pressure and liquid velocity
Pump frequency conversion controller, real-time display speed, frequency
Temperature and pressure preset alarm

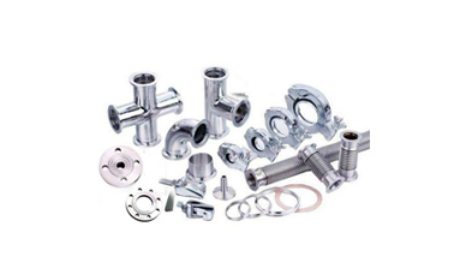

Material Standard
Contact material part: Material AISI 304, food grade hose material circulation tank
Non-contact material: Material AISI 304, carbon steel + spray paint
Pipeline：Sanitary seamless stainless steel tube
Valve：Food grade health level direct ball valve, diaphragm valve
Materials, heat exchangers, flow meters, valves, pumps, etc. can be customized according to the user's environment.
