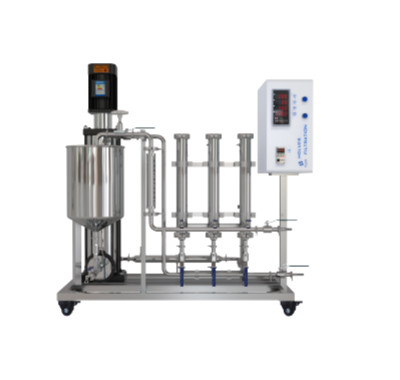

TFF Device Mini T01
Basic information
● Model：Mini T01
● Process capacity ：0.1～20L/H
● Membrane form：1~3 pieces 0.1㎡ imported original cassette with flat sheet membrane
● Power unit：LONGER original peristaltic pump 220V, maximum flow 2L/MIN
● Feed tank：Material AISI 316L, volume 2L
Description
Specification
Optional items
System Survey
● Suitable for laboratory small-scale TFF research
● Biological separation, material concentration, protein purification
● Adopt medical grade hygienic standard to design and manufacture, small size, exquisite and easy to dismantle.

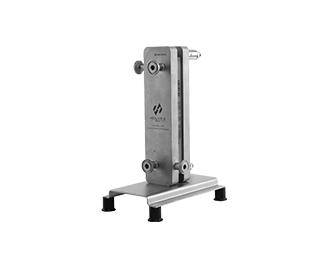

Stainless Steel Clamp
● Material AISI 316L
● 2- inlet and 2 - exit sanitary fast interface, inner surface mirror polishing, outer surface high-grade sandblasting
● Matching 0.1㎡ imported original cassette with flat sheet membrane, optional brands are Millpore, Sartorius, PALL

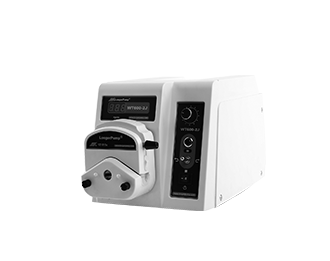

Power Unit
●LONGER original peristaltic pump, the quality is reliable
● Maximum flow：2L/MIN，maximum pressure：0.3Mpa
● Control：on off control, direction control, speed control (0-5V、0-10V、0- 10KHZ are optional)

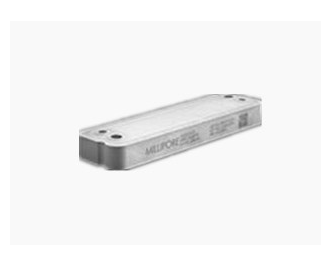

Flat Membrane Bag
● Filtration area：0.1㎡, ultrafiltration / microfiltration is optional
● Membrane material：Biomax, PLC, PVDF
● Optional brands：Millpore, Sartorius, PALL
Model: Mini T01
