SM Series

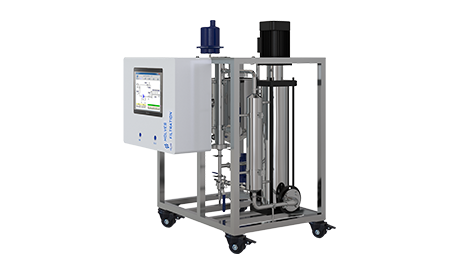

Multifunctional Membrane Separation Device Multi SM-A1812
Basic information
● Model：Multi SM-A1812
● Process Capacity：2～7L/H
● Membrane Element：GE imported original roll type membrane, single membrane area 0.26㎡
● Power Unit：Imported GRUNDFOS pump, 0～26Bar（Adjustable frequency）
● Material Circulation Tank：effective volumeV=10L
Description
Specification
Optional items
System Survey
● Laboratory type Multi SM-A1812（automatic type）is mainly used for separation and purification of ultrafiltration(UF), nanofiltration (NF), reverse osmosis (RO), which can be filtered, decolorized, desalted, purified, concentrated.
● According to the size of the molecular weight of the separated material, the selection of the membrane was carried out, and the material of 0.03μm to 100dalton could be separated.
● Laboratory type Multi SM-A1812（automatic type）is mainly used for separation and purification of ultrafiltration(UF), nanofiltration (NF), reverse osmosis (RO), which can be filtered, decolorized, desalted, purified, concentrated.
● According to the size of the molecular weight of the separated material, the selection of the membrane was carried out, and the material of 0.03μm to 100dalton could be separated.
● The equipment has the advantages of easy cleaning and maintenance and great freedom of use， etc.

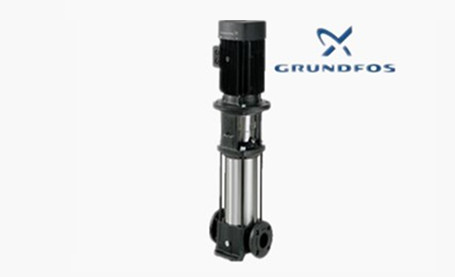

Power Unit
● Imported GRUNDFOS pump
● Variable frequency control, 20 ~ 50Hz adjustable, wide range use
● Flow：200～1100L/H
● Pressure：0～26Bar adjustable
● Variable frequency control, 20 ~ 50Hz adjustable, wide range use
● Flow：200～1100L/H
● Pressure：0～26Bar adjustable

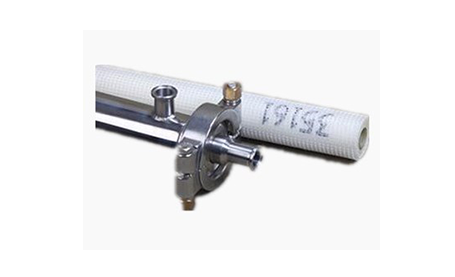

Membrane Shell
●3 pieces in parallel
● Connection mode: high pressure clamp quick disconnection, withstand voltage 20Mpa
● Material：AISI 304
● Surface treatment: external surface brushed, inner surface polishing, food hygiene grade.

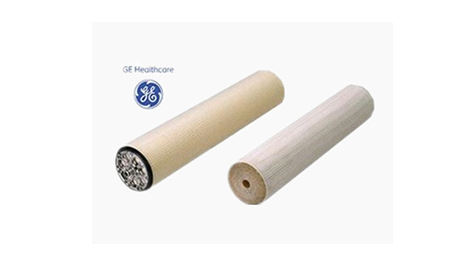

Roll Type Membrance Element
● GE imported original roll type membrane, 3 pieces
● Membrane Model：1812 Industrial separation film, anti-pollution film
● Range of application：MF, UF, NF, RO
● According to the user's process, 1812 with different brand membranes and with the same specifications can be selected, including homemade roll membranes

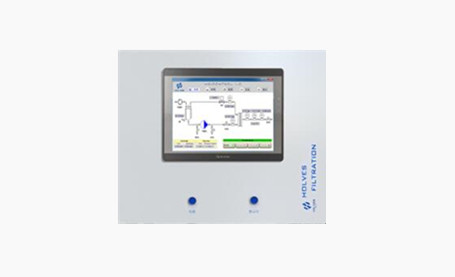

Control Cabinet
● Instrument control cabinet on site
● Control Mode: PID Instrument control, automatic adjustment
● Sensor: temperature electrode, pressure sensor, variable frequency motor
● Flowmeter: field flow meter, manual adjustment
●Instrument: four-in-one display + control instrument, variable frequency regulator
●Instrument: four-in-one display + control instrument, variable frequency regulator

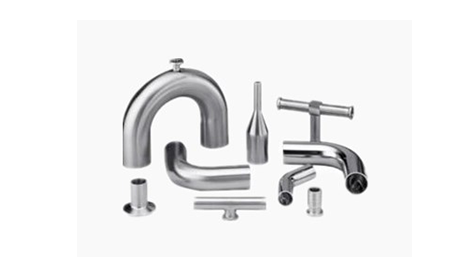

Material Standard
● Contact material part: Material AISI 304, food grade hose
● Non-contact material part: Material AISI 304, carbon steel + spray paint
● Pipeline: Sanitary seamless stainless steel tube
● Valves: Food Grade Sanitary Ball Valves, Diaphragm Valves
